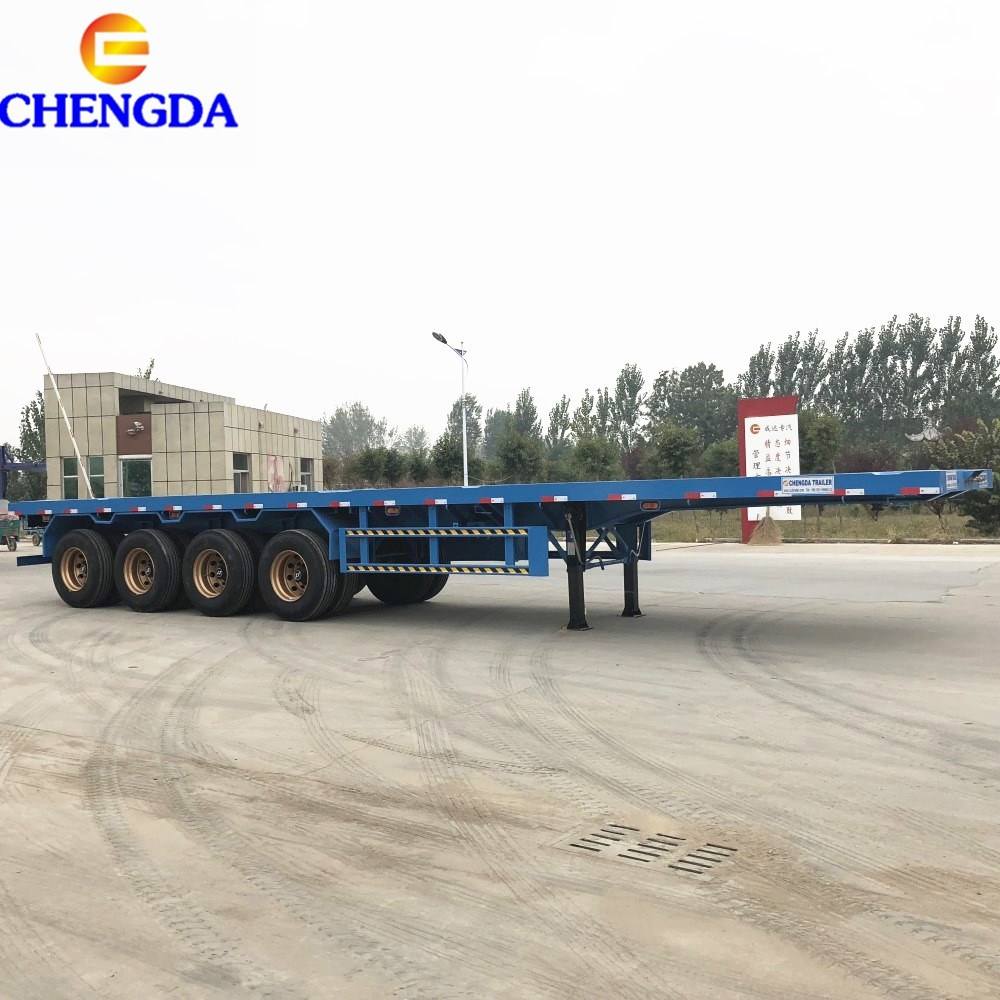

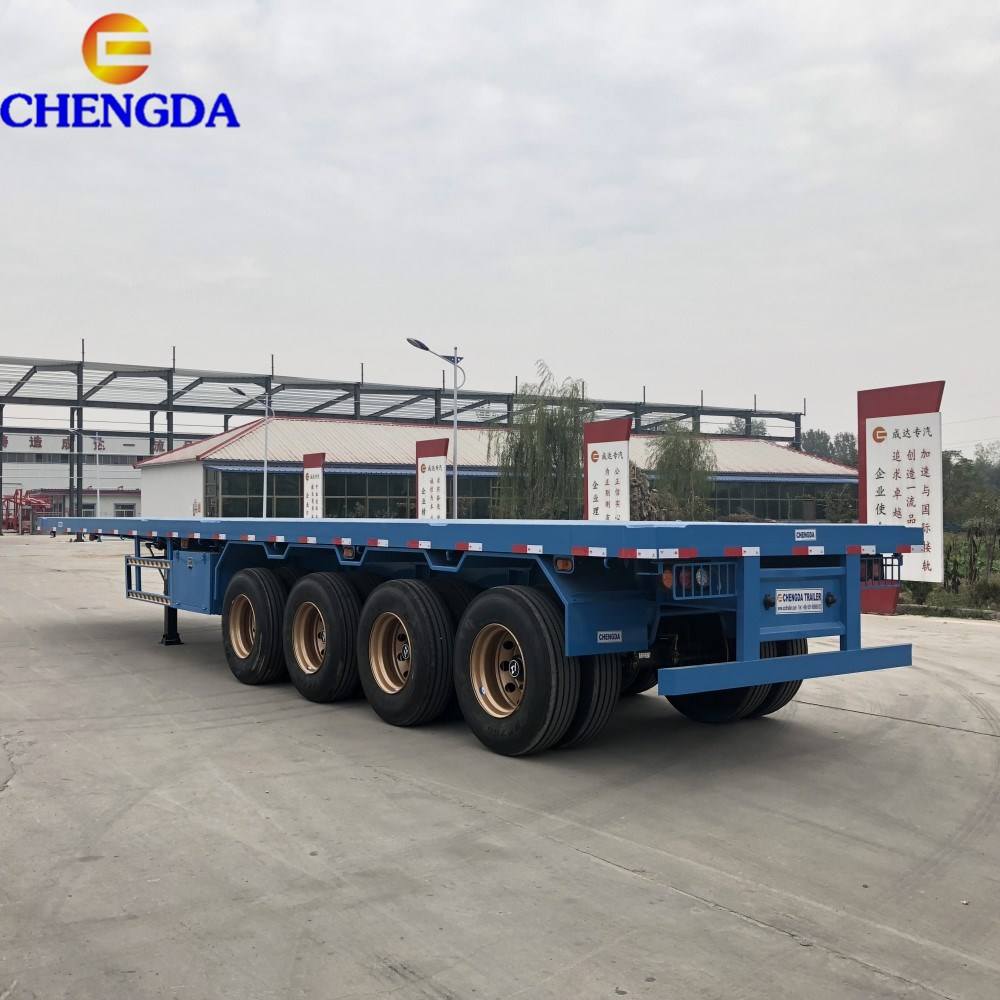

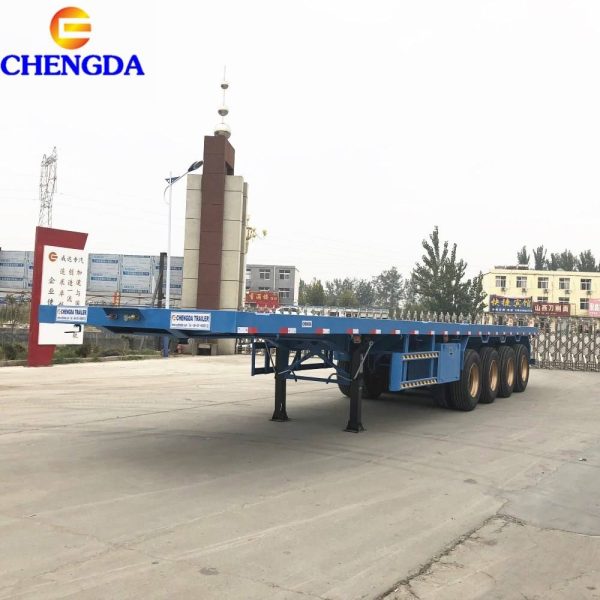

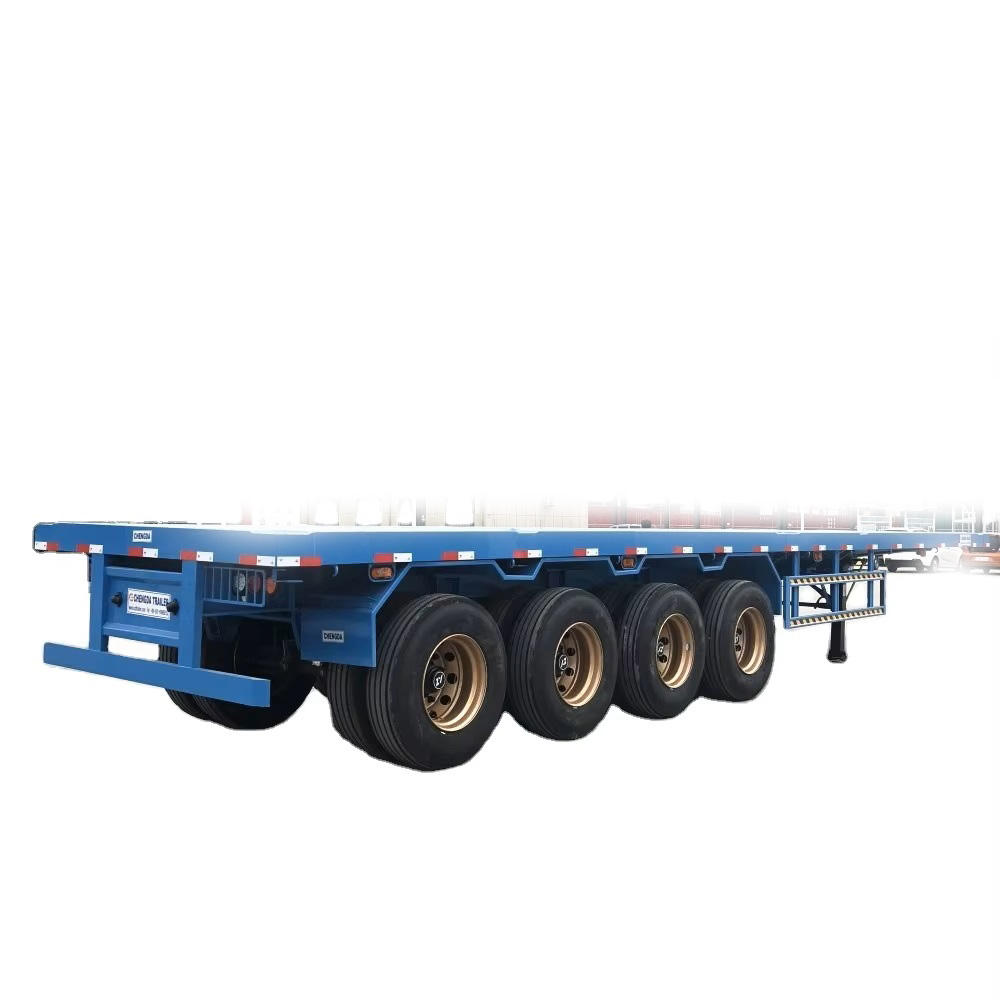

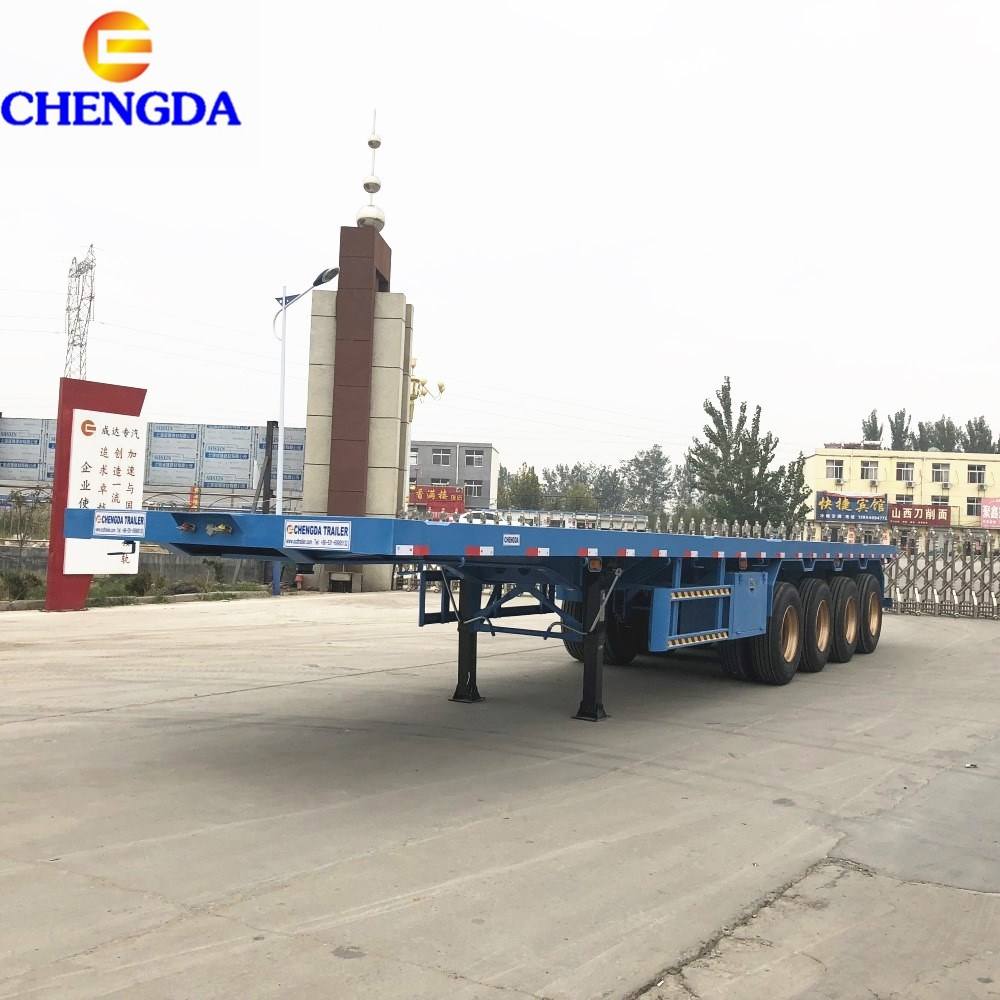

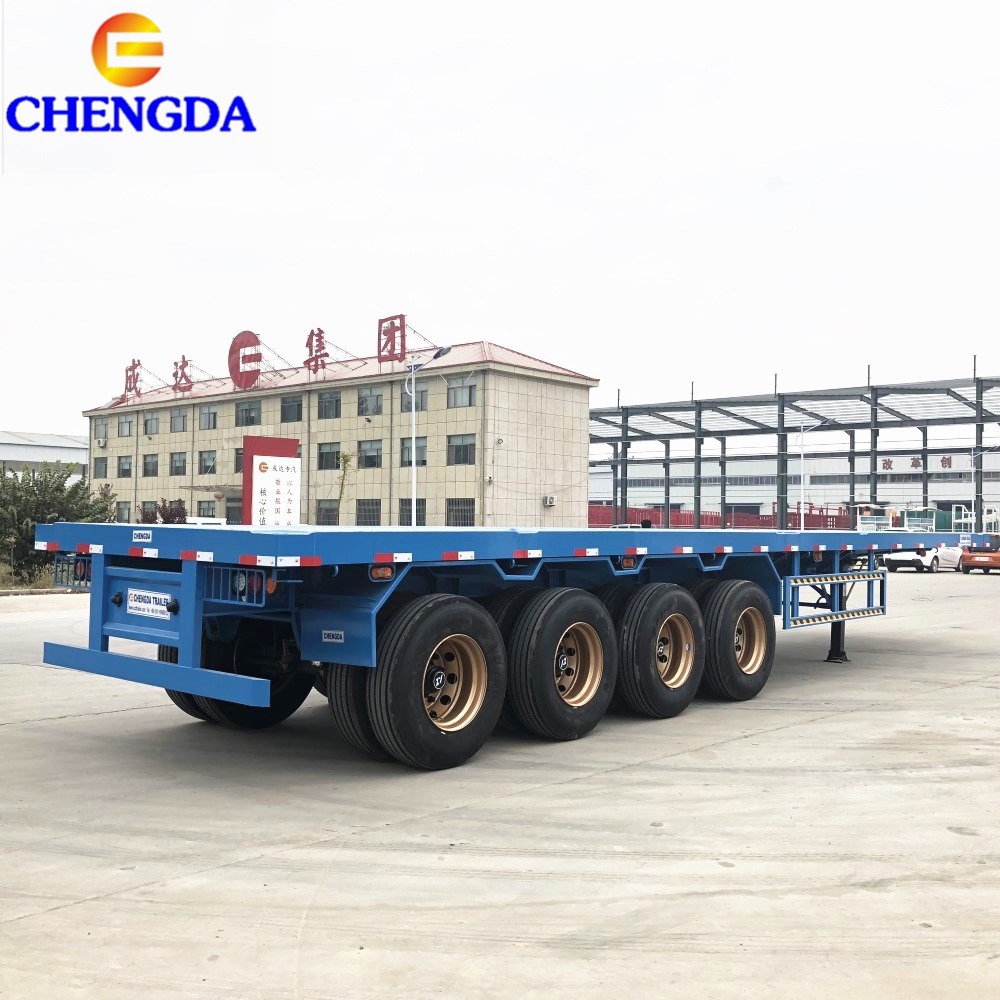

4 axle 45ft flatbed trailer is provided to maximize the payload after fully understanding and analyzing the transportation environment of different countries. The length of the trailer can also be customized, such as 40 feet, 48 feet, or 53 feet container transport trailer.
All the spare parts we use are world-renowned brands to ensure the semi-trailer’s service life. We use the famous German WABCO brake valve, which will shorten the braking distance and ensure the safety of the trailer and the driver. In addition, the trailer floor is a lattice plate, which will make other bulk goods, such as bags or long objects, more stable.

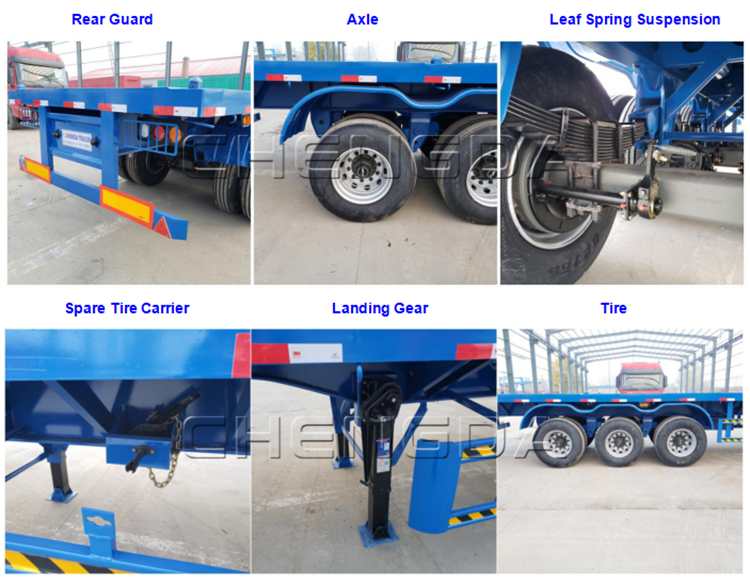

Specifications of 4 axle 45ft flatbed trailer
| Item | Value |
| Overall Dimension(Lx W x H) | 12500*2500*1550(mm) |
| Loading Weight( KG) | 40 – 80 tons |
| Axle Brand | ZY / FUWA / JOST optional |
| Axle Number | 2 / 3 / 4 optional |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm*16(Thick)mm*10 Layer |
| The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10 mm. |
| Tire | 12R22.5 |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO |
| Brake system | Dual Line braking system / ABS. |
| Landing Gear | Standard 28ton |
| Brake air chamber | Six big chamber |
| Electrical system | Voltage: 24v Receptacle: 7 ways (7 wire harness) |

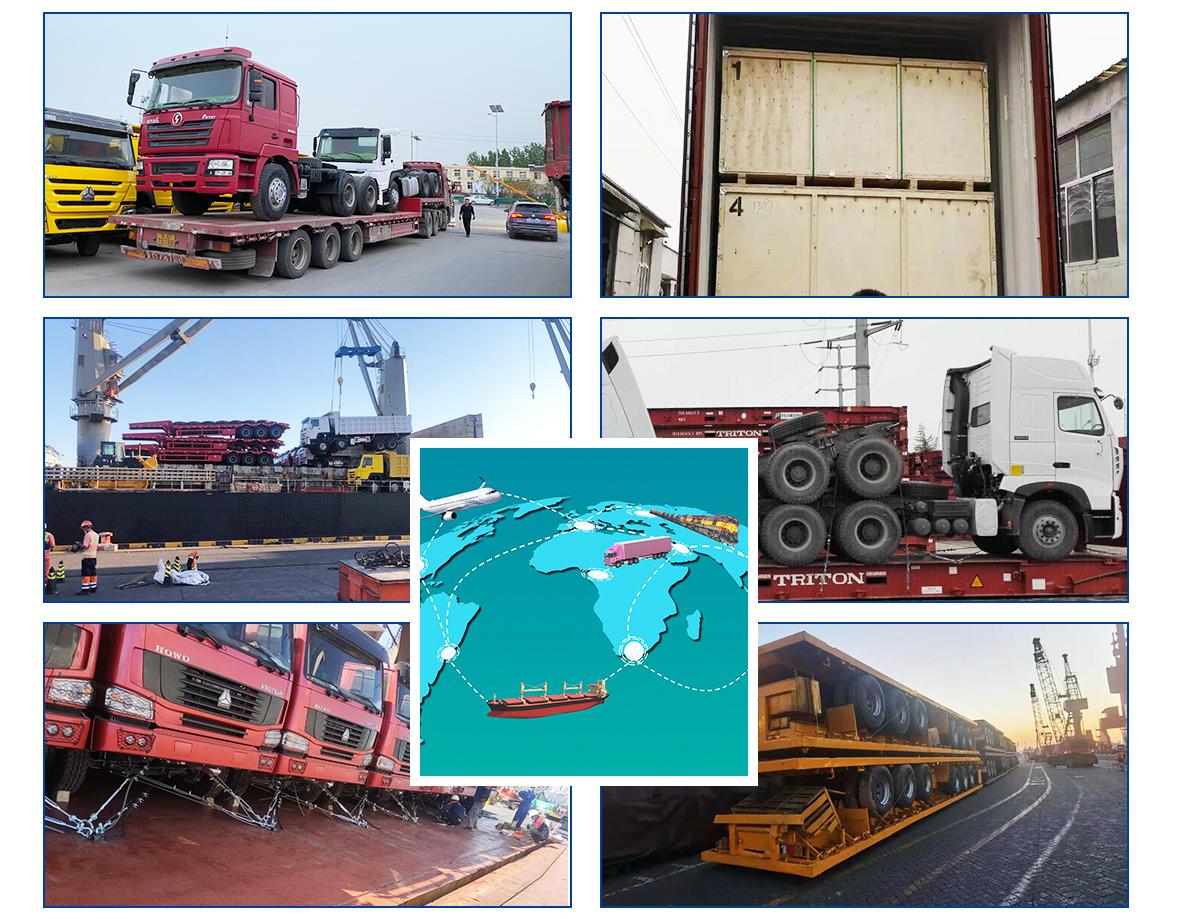

Packaging and transportation
All flatbed semi-trailers will be strictly tested before delivery to ensure quality. We have professional technicians to operate.
In addition, spray a layer of wax on the semi-trailer to prevent seawater erosion, and then wrap a layer of rain cloth to prevent moisture, to be foolproof.
About Us
As a reliable manufacturer with vitality, potential and comprehensive strength, Chengda mainly provides bulk cement tank semi-trailers, low bed semi-trailers, retractable semi-trailers, detachable gooseneck semi-trailers, fuel tank semi-trailers, asphalt tank semi-trailers, LPG/LNG/CNG tank semi-trailers, 4 axle 45ft flatbed trailers, skeleton trailers, pile box/cargo/fence trailers, dump and tip trailers, car transport semi-trailers, wood/timber transport trailers, and trailer parts. In addition, we have a professional design team to meet your customized requirements.
