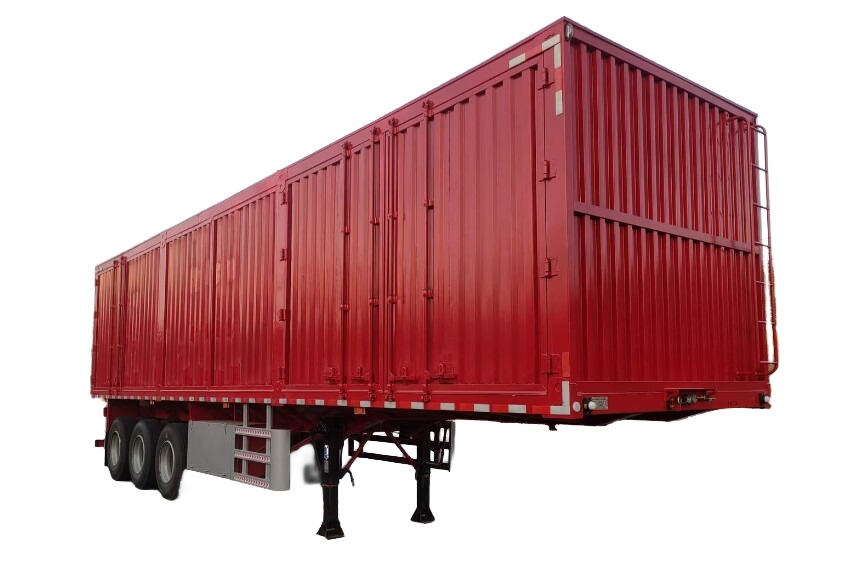

Box container trailers have the features of availability and high protection of cargo. These trailers are completely closed and sealed. Therefore, the cargo is not affected by any external influence.
Box container trailers transport non-perishable food and beverages, household goods, clothing, plastics, and building products.
Features of box container trailer
1. The box transport semi-trailer has a strong carrying capacity, high safety factor, reasonable design, strong and durable, and advanced manufacturing technology.
2. The frame of the box transport semi-trailer is a beam structure, and the longitudinal beam is straight or gooseneck. The web height is 400 to 550, the longitudinal beam is automatically welded, the frame is shot blasted, and the cross beam is inserted into the longitudinal beam and welded.
3. Box structure: The body is made of high-strength cold-rolled corrugated steel plate, frameless structure, wide center, diverse selection, large loading space, reasonable distribution in the body, X-shaped support, multi-pull, heavy load, lightweight, and other characteristics. The roof has closed, push-pull, open, and open tarpaulin pole types, etc., which is easy to operate and meets the diverse and personalized needs of users.
Specifications of box container trailer
| Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm material:Q345B |
| Side beam | Q235 16# channel steel |
| Axle | 13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance |
| Tires | 12R22.5, 12 pcs. Taitong brand |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| King pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing gear | 28 ton single action supporting legs |
| Steel spring | 10/10/10 leaf spring suspension |
| Air chamber | Six double air chamber |
Packaging and transportation
Transportation Mode: RoRo, Bulk, Container
We can provide customers with the most economical semi-trailer transportation plan according to the number of semi-trailers they require.
Why choose us?
Chengda Group is a company engaged in the sales and service of semi-trailers, trucks, used semi-trailers, used trucks, auto parts, and new energy vehicles. Our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high-quality products and competitive prices.
FAQ
Q: Does your company have a factory?
A: Yes, we are a manufacturer and have been in this field for 20 years.

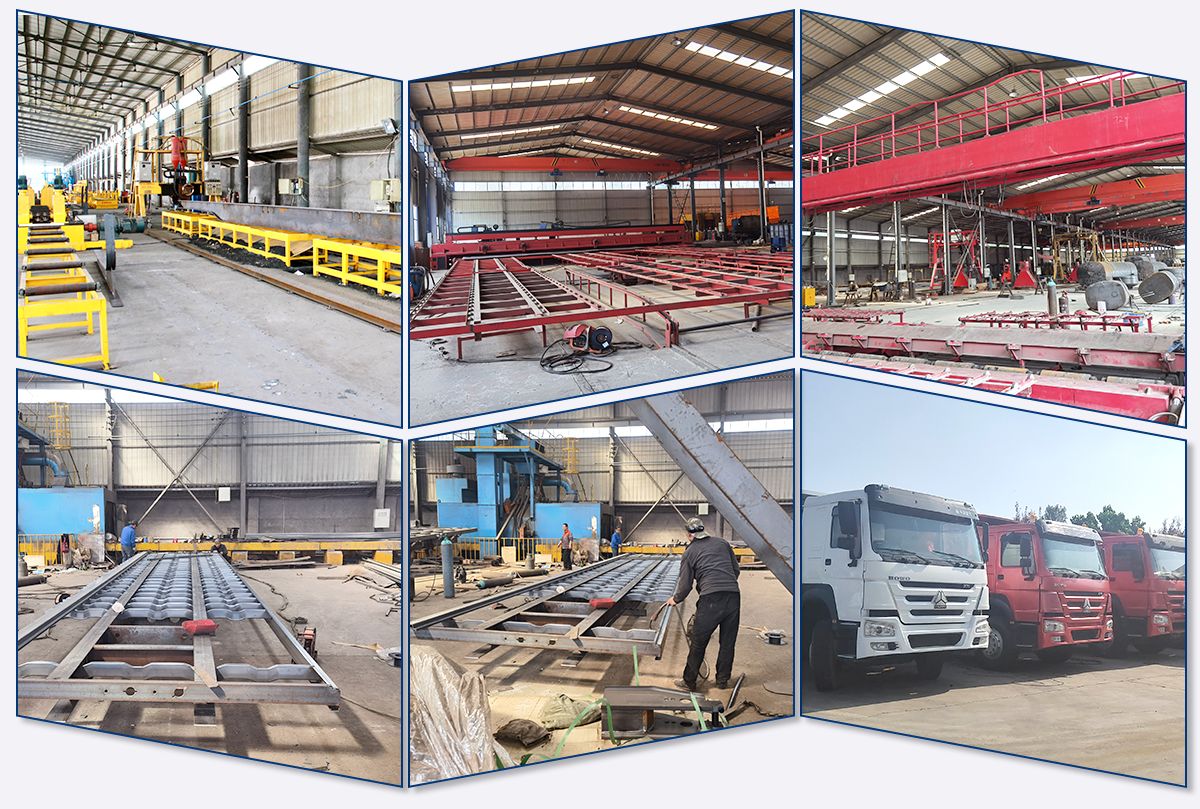

You are welcome to visit our factory at any time!
Q: How about the delivery time?
A: Generally, 15-25 working days after receiving the deposit, depending on the purchase quantity.
Q: How is the quality of your products?
A: Quality is our culture! Our factory has advanced production technology and a management team!
We attach great importance to quality control from the beginning!
Q: Can you customize the semi-trailer according to our requirements?
A: Of course, this is our advantage, what you want, what we produce.
Q: Can you paint our company logo on the box container trailer?
A: Yes, it is available, you can send me the logo picture before the trailer is completed, and we will put your company logo on it.
