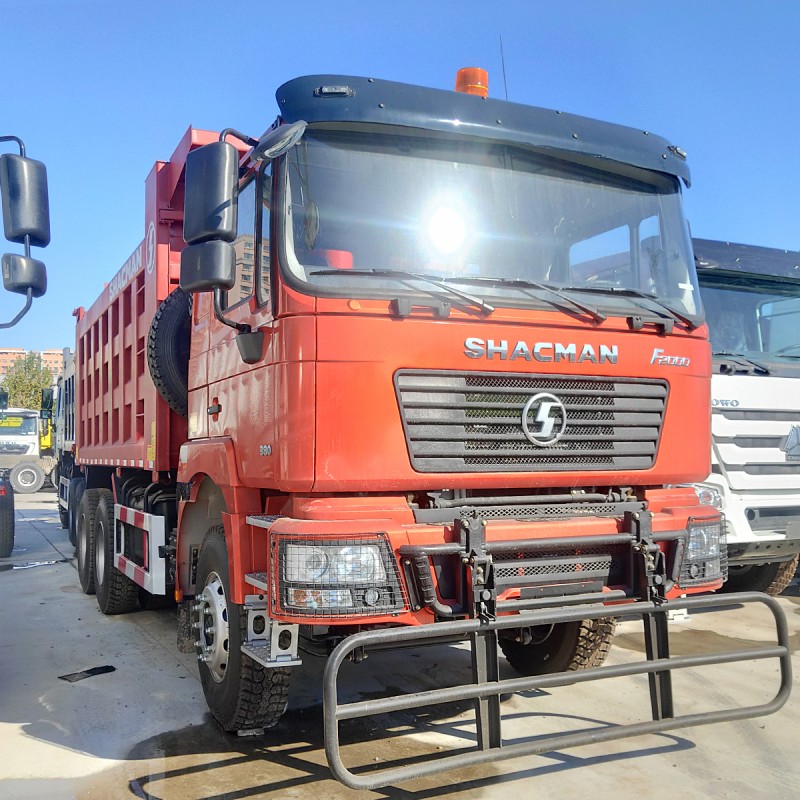

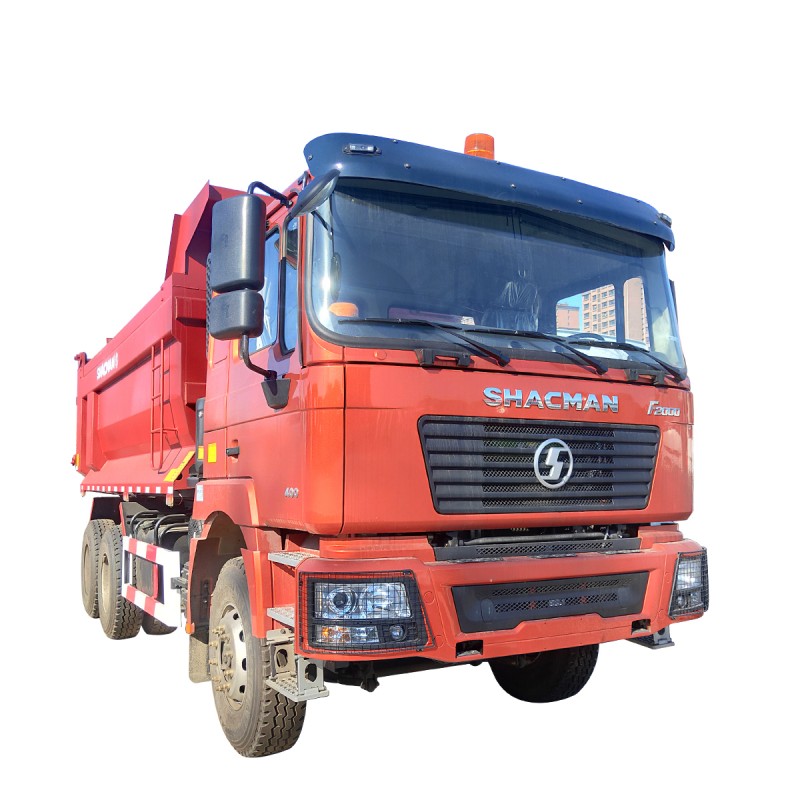

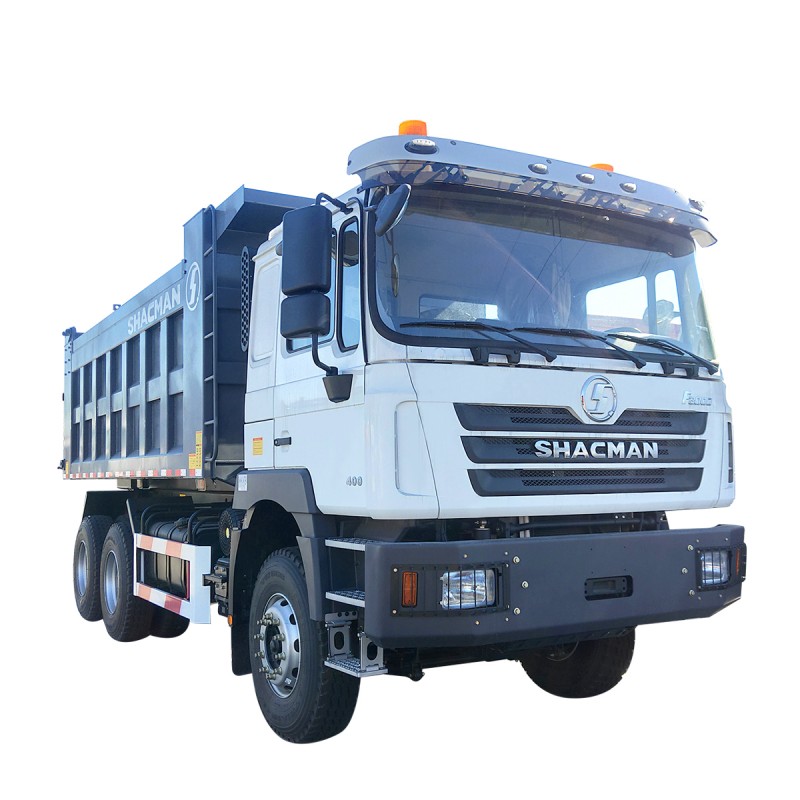

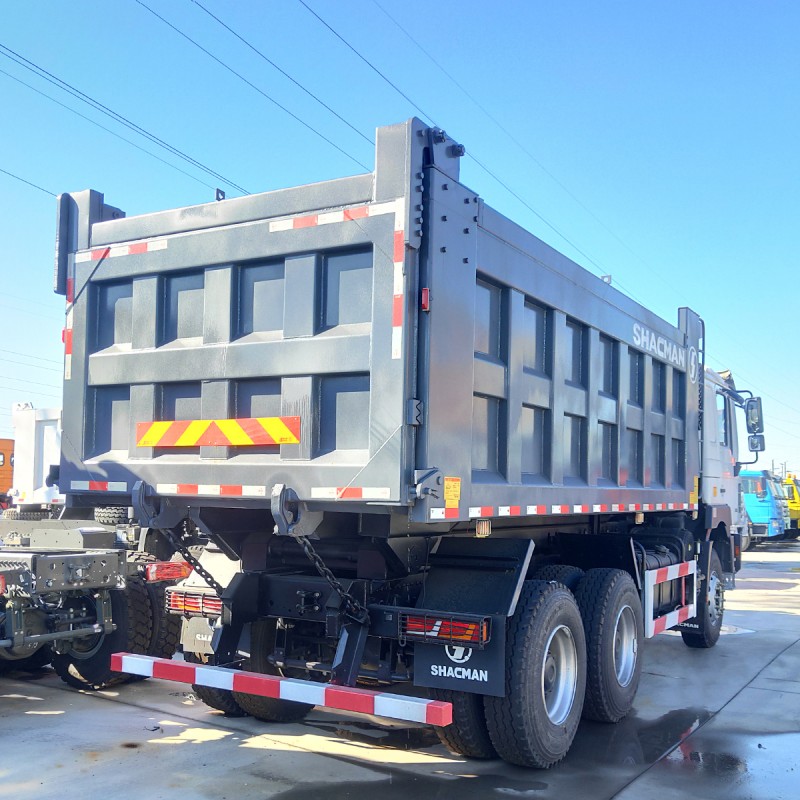

The Shacman 6×4 tipper truck is a dump truck that we carefully design and manufacture, offering reliability, economy, safety, and comfort. Our product adopts a wide body and a lengthened cab, which is comfortable to drive. Its internal structure and material selection are very fine, making it of high quality and able to meet most of the users’ needs.
Product Features
Shacman 6×4 tipper truck is multi-purpose and can be used for urban construction, mining area transportation, etc., with an economic speed of 30~50km/h. It mainly meets the user’s requirements for high quality, functionality, and economy.
It is more durable than ordinary trucks and has better carrying capacity. Due to the environment of use, all the products and parts we use fully consider the mining environment, which is durable and has better load capacity.
Specifications of Shacman 6×4 dump truck
Shacman 6×4 tipper truck is equipped with a number of safety technologies such as retarder, disc brake, EBS braking technology, engine braking technology, rearview mirror extended field of view, etc., to protect the safety of drivers and passengers. The cab of the Shacman 10-wheel dump truck adopts a frame drive structure design, and the anti-extrusion capacity is increased by 22.9%.
| Drive type | 6×4 LHD | |
| Cab | Type | F3000 mid-lengthened flat roof with AC |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rear-view mirrors, electronically controlled automatic constant temperature air conditioner, manual window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grille, taillight protection Grid,WABCO 6 line ABS, 180Ah battery, SHACMAN logo | |
| Vehicle Main Dimensions | Wheel base(mm) | 3775+1400 |
| Total dimensions | 8750×2490×3450 | |
| Front/Rear overhang(mm) | 1525/1629 | |
| Approach/Departure | 28/23 | |
| Weight | Kerb mass | 12400kg |
| Total mass | 25000kg | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Power(kw/HP) | 250/340 | |
| Displacement(L) | 9.726 | |
| Emission Standard | Euro II | |
| Transmission | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Control type | Manual | |
| Gear shift | 10-forward and 2-reserve speeds | |
| Axle | Front axel | MAN 7.5T |
| Rear axel | Man 16T double reduction axle with ratio 5.262 | |
| Tires | Type(Standard) | 12.00R20 |
| Dump Body | Cargo Dimension (mm) | 5600×2300×1400, 18CBM, middle lifting system, thickness of floor 8mm and side 6mm |
Packaging and Transportation
Professional freight forwarder.
We usually use bulk, frame boxes, and Ro-Ro shipping.
Packaging: standard export packaging, or customized packaging according to your requirements.
We will arrange the most cost-effective transportation method according to the quantity of the product.
Delivery time: 20-40 working days after confirmation of payment receipt (subject to actual quantity).
About us
Chengda Group has 20 years of foreign trade experience. The company adheres to the principle of “reliable reputation, customer first”, provides customers with cheap and good Shacman 6×4 tipper trucks, constantly innovates, develops together, and achieves a win-win situation! With advanced technology, scientific management, rigorous style, and innovative consciousness, careful organization, fine construction, excellent engineering, and high-quality and comfortable services have been recognized by the owners, establishing the company’s brand and expanding the company’s market.
