Features of trailer axle
1. The axle has two types: one-piece axle tube and welded tube, solid axle head, and long service life.
2. High-quality asbestos-free environmentally friendly friction plate, good performance, easy replacement.
3. The bearing is treated with high-frequency quenching, with large load capacity, high speed, and safe use.
4. The tire bolts are made of high-strength alloy steel. Equipped with two positioning sleeves.
Specifications of trailer axle
| Model | Capacity(kg) | Track(mm) | Axle Tube(mm) | Brake Size | PCD(mm) | Total Length (mm) | Recommended Wheel |
| LHGA-F12T | 12000 | 1840 | 127 | 420*180 | 335 | 2165 | 7.5V-20 |
| LHGA-F14T | 14000 | 1840 | 127 | 420*200 | 335 | 2185 | 7.5V-20 |
| LHGA-F16T | 16000 | 1850 | 150 | 420*200 | 335 | 2185 | 7.5V-20 |
| LHGA-F18T | 18000 | 1850 | 150 | 420*220 | 335 | 2185 | 7.5V-20 |

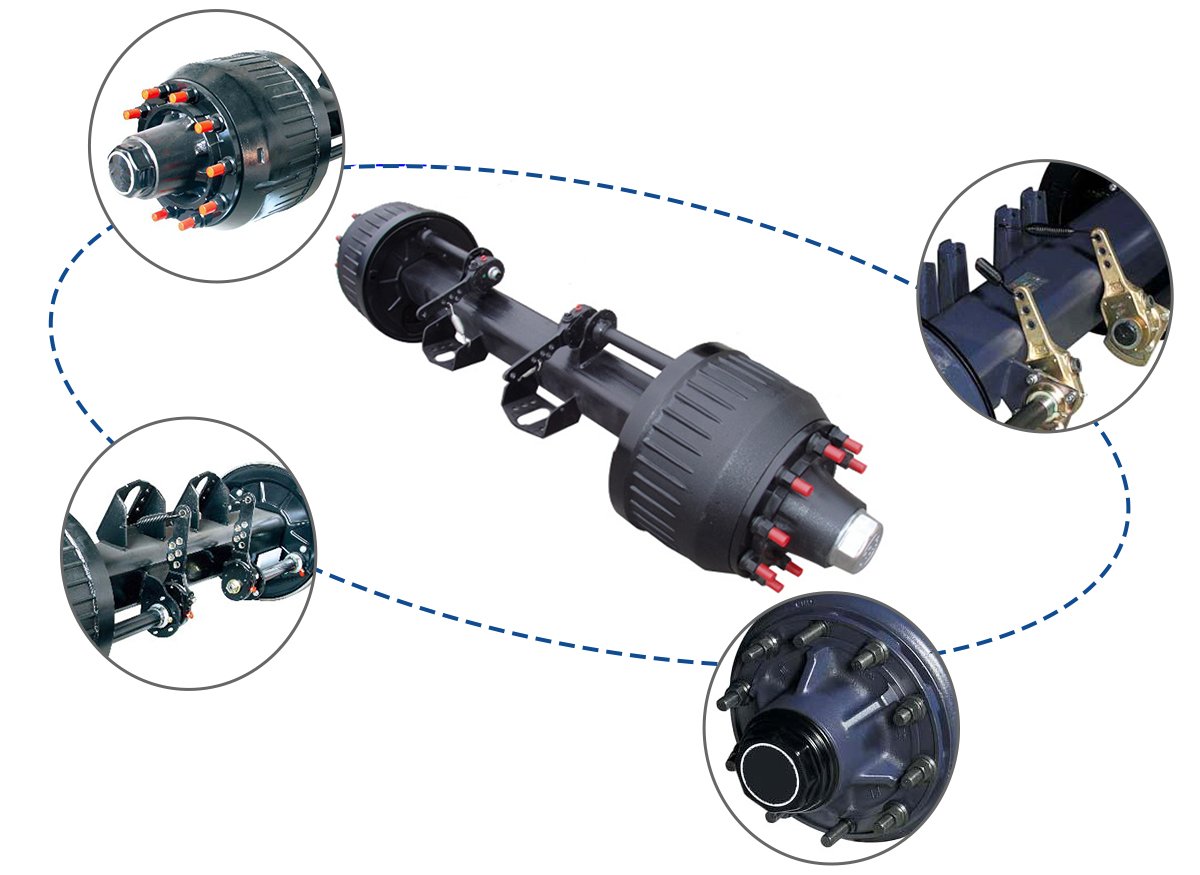

Details Display
Packing and Transportation
We will choose the best transportation method for you according to your needs.
About Us
Chengda was established in 2005 and is one of the qualified manufacturers of various types of trailers, integrating production, scientific research and development, and a professional sales team. All these advantages can provide a full range of services for trailers, semi-trailers, tractor heads, dump trucks, construction machinery, and trailer parts.
Our Advantages
1. Original main components: The main engine components are all from the original factory, which makes the bare machine stable and of excellent quality.
2. Strict quality control: All assembled engine long cylinder blocks/short cylinder blocks will be strictly tested one by one to ensure that there are no quality problems before packaging.
3. Competitive Price: Compared with the products of the same quality as ours in the market, our engine products have more competitive prices due to strong supply chain management capabilities.
